Parallel Generator

SVO-03
SVO-03

■ Overview

   The Parallel Generator SVO-03 is a camera emulation board that converts video signals input from USB3.0 or HDMI to parallel video signals, and outputs them.
   The images recorded on SVO-03 can be output to image processors, as if they were images from a camera module or CMOS image sensor. CG images can also be used. This makes it possible to develop image processors, even when recording on site is difficult or when you have not had sensors yet such as under developing them.
   In addition, the multi-boot function allows for various functions such as outputting HDMI-input to UVC (USB).
■ Characteristics
   • Supports parallel output up to 16bit 150MHz
• Iutput from USB3.0 (Vendor Class) or HDMI
• Compatible with 1.9Gbps automotive serializer
■ Specification

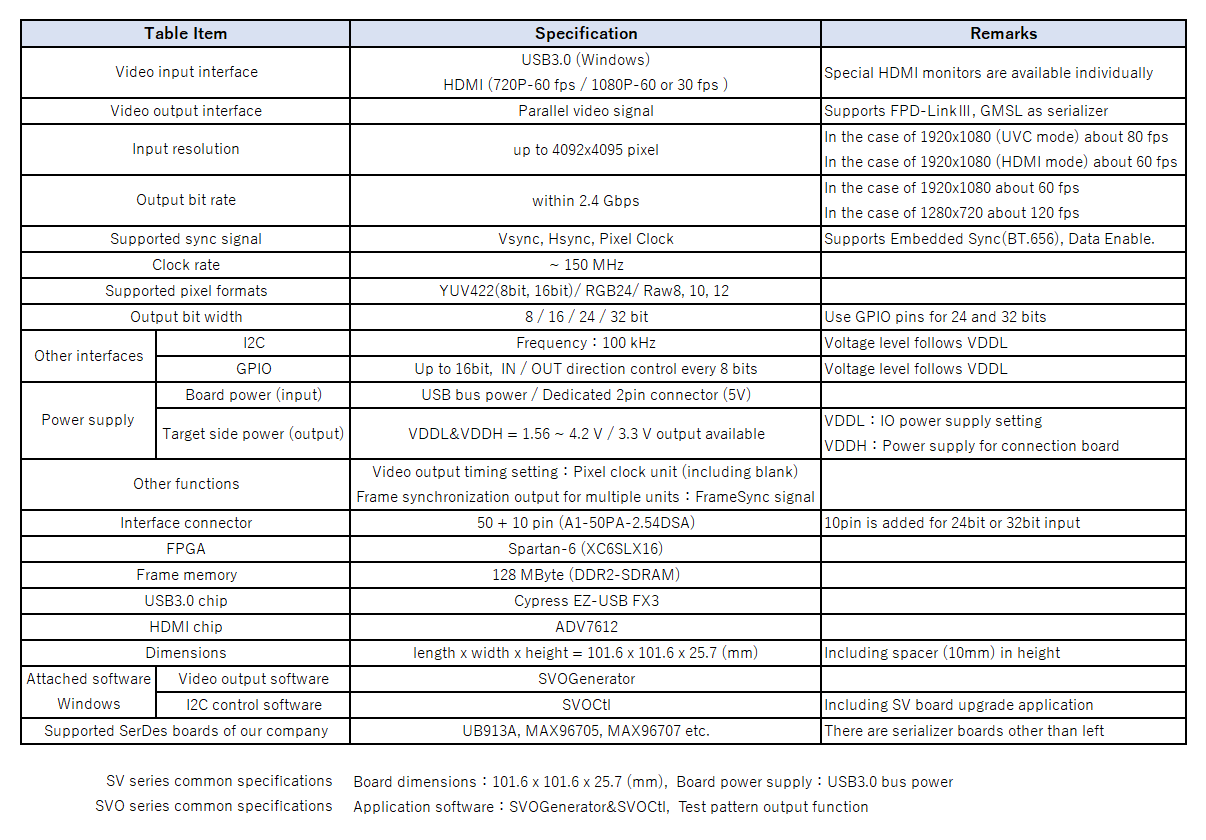

specification_SVO-03
■ Design document
SVO-03 Hardware Specification (PDF)
SVO Software Manual (PDF)
■ SVO-03 application example
Camera Emulation System for DRIVE PX2/AGX
■ Uses / Example of a track record
CMOS sensor & Camera module emulator, Picture playback, DSP Verification, Evaluation
■ Industries of using frequently
Automotive / transportation equipment, medical testing / analysis / measurement, IT / information / communications, software, education / research institutions, and so on

Notes: Product names and company names are trademarks of each companies. These data may be changed without a preliminary announcement for specification change.
