#1 Video Scaling Demo Using indie's iND880 EVK


This demo features indie's iND880 (formerly known as GW6) camera video processor.
Using the iND880 EVK, two 3840×2160@30fps camera video streams are processed, each is scaled to 1920×2160, and combined side-by-side into a single 3840×2160@30fps image. The output is displayed on a 4K monitor via the SVL-03-UVC.

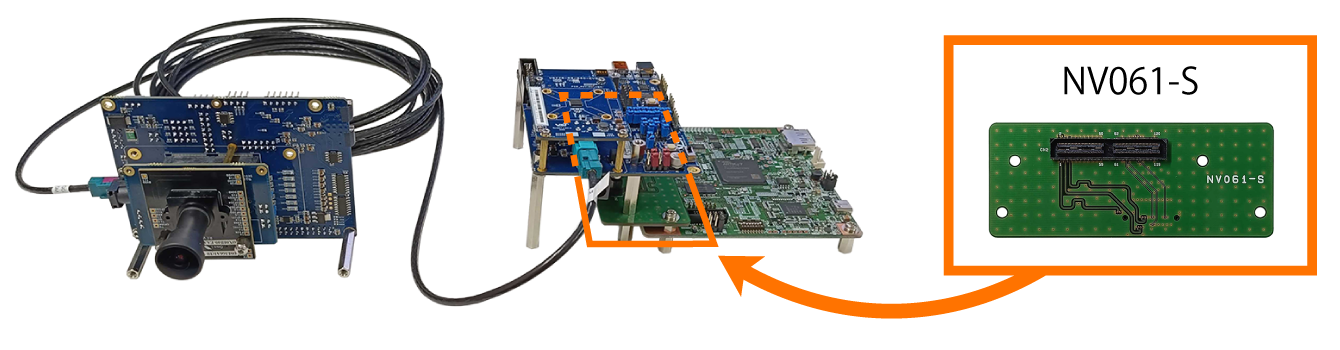

#2 Demo Using Microchip Technology's ASA (Automotive SerDes Alliance)
In this demo, we combine Microchip’s VS775S-EVB with our MIPI monitor board, SVL-03-UVC, to display video from an ASA camera on a PC. The two boards are connected using the “NV061-S” interface board.
This setup enables real-time capturing and monitoring of ASA-compliant video signals on a PC. It allows for efficient image quality evaluation during development and quick validation of camera module performance, providing strong support for the development and testing of high-performance automotive camera systems.

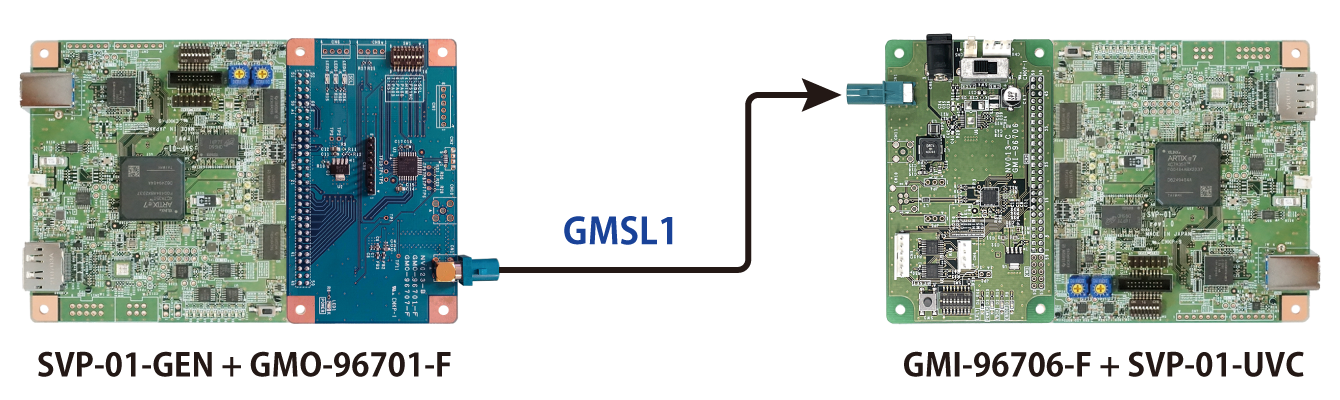

#3 SerDes Demo Using SVP-01-GEN and SVP-01-UVC
This is a 1.6Gbps data transmission demo using Analog Devices’ GMSL1 SerDes.
The set of GMO-96701-F and SVP-01-GEN outputs video data from a PC via GMSL, acting as a camera emulation. The GMSL signal is then received by the set of GMI-96706-F and SVP-01-UVC and displayed on a monitor. Standalone mode allows for test pattern output without a PC. We are considering future updates based on feedback from production sites, so please feel free to share your requests or suggestions.



#4 SVL-06 Board for 4K 60fps Data Transmission (Coming Soon!)
We are pleased to introduce our next-generation board, SVL-06, which supports 4K resolution at 60fps over a 10Gbps link.
This board features the Efinix Titanium FPGA and Infineon Technologies' EZ-USB FX10.
We are now beginning internal implementation and aim to demonstrate its functionality by the end of the year.
As we continue development, we welcome your ideas for useful features. Please share your requests with us at the event.


Please feel free to contact us if you are interested.
