Connection Boards for GMSL Evaluation Kits
NV061-R / NV061-Q We developed two boards to connect the Analog Devices GMSL EV kits and our SV series boards.
The first one is "NV061-R", which is for connecting the Serializer EVKIT and our MIPI generator SVO-03-MIPI. The other is "NV061-Q", for the Deserializer EVKIT and our monitoring board SVM-06.

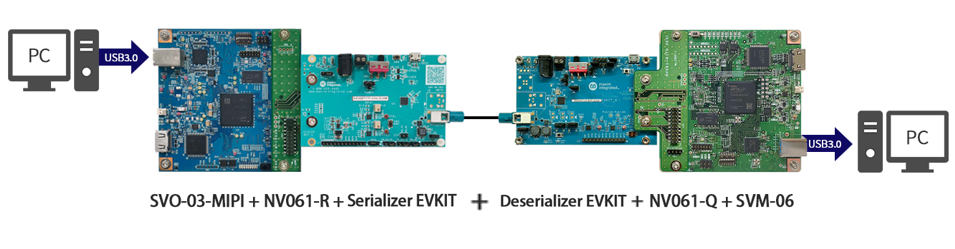

As shown below, if you have the EVKIT, you can easily evaluate ICs.
The first one is "NV061-R", which is for connecting the Serializer EVKIT and our MIPI generator SVO-03-MIPI. The other is "NV061-Q", for the Deserializer EVKIT and our monitoring board SVM-06.

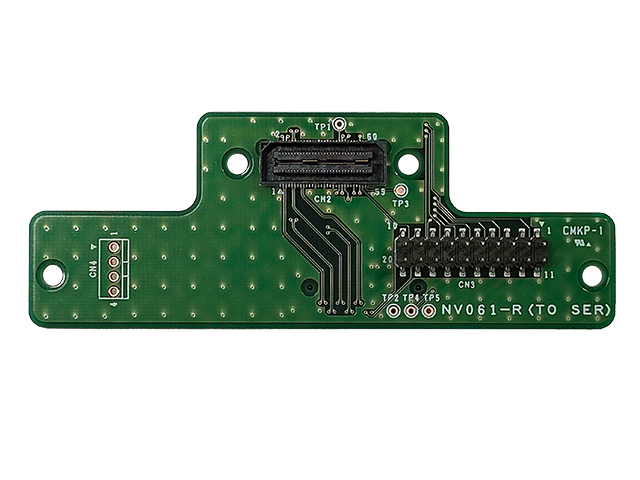

NV061-R

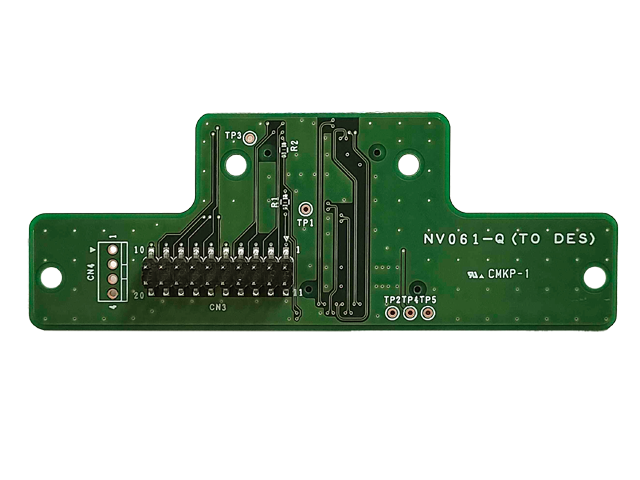

NV061-Q
As shown below, if you have the EVKIT, you can easily evaluate ICs.

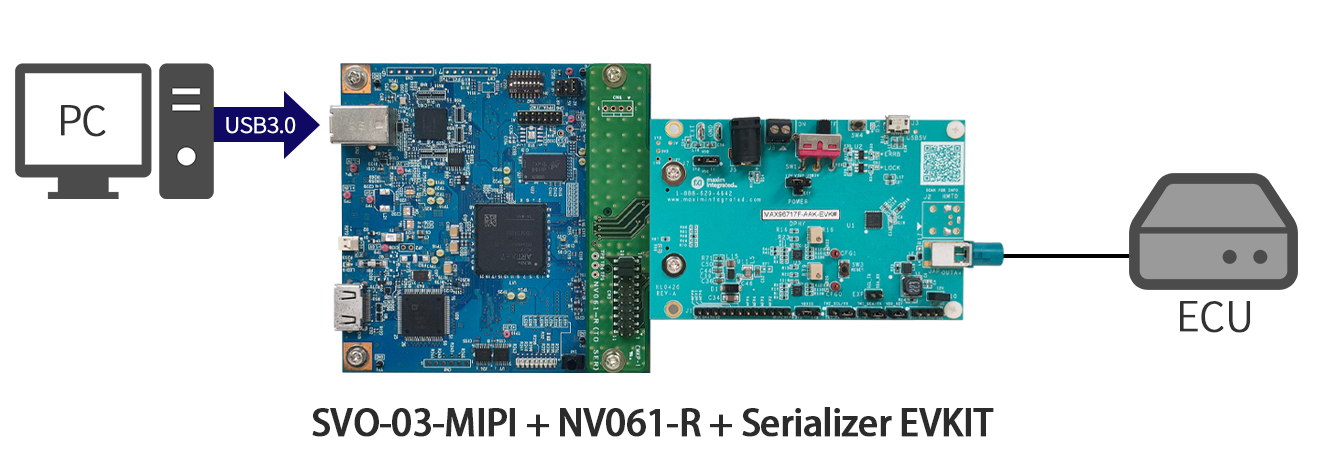

■GMSL Serializer evaluation

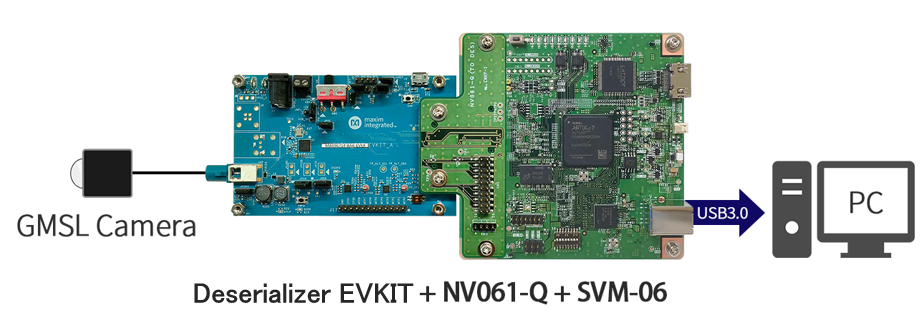

■GMSL Deserializer evaluation

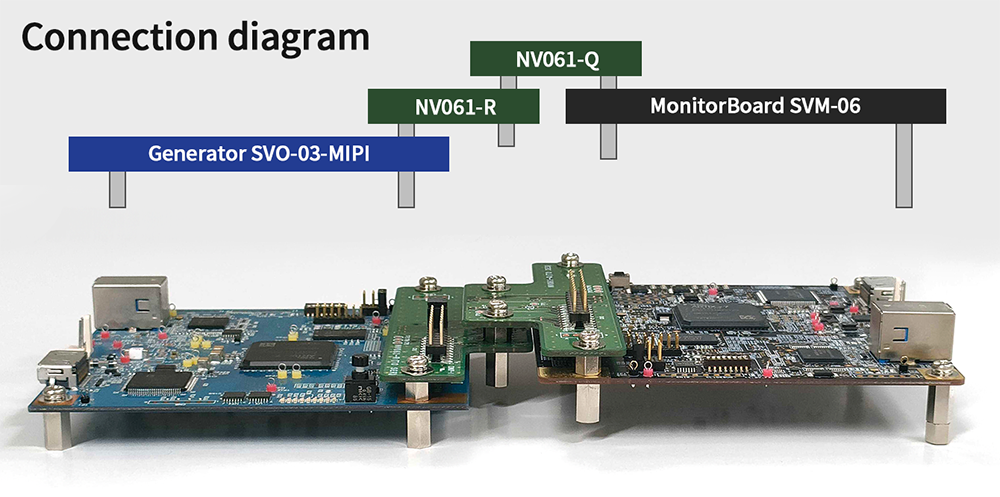

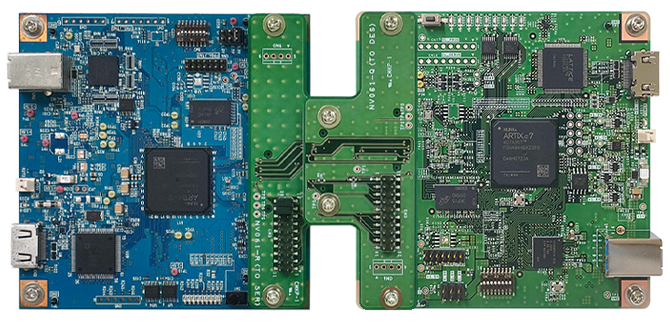

NV061-R and NV061-Q can also be directly connected.

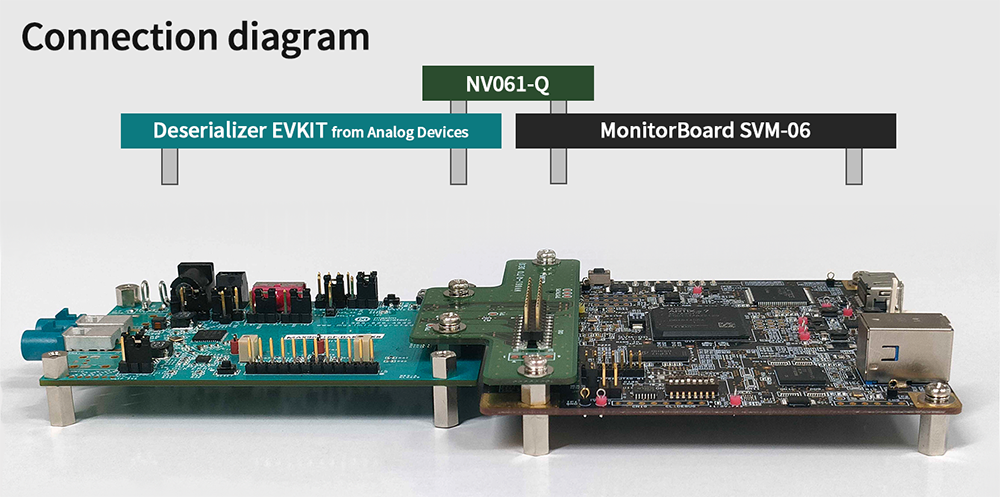

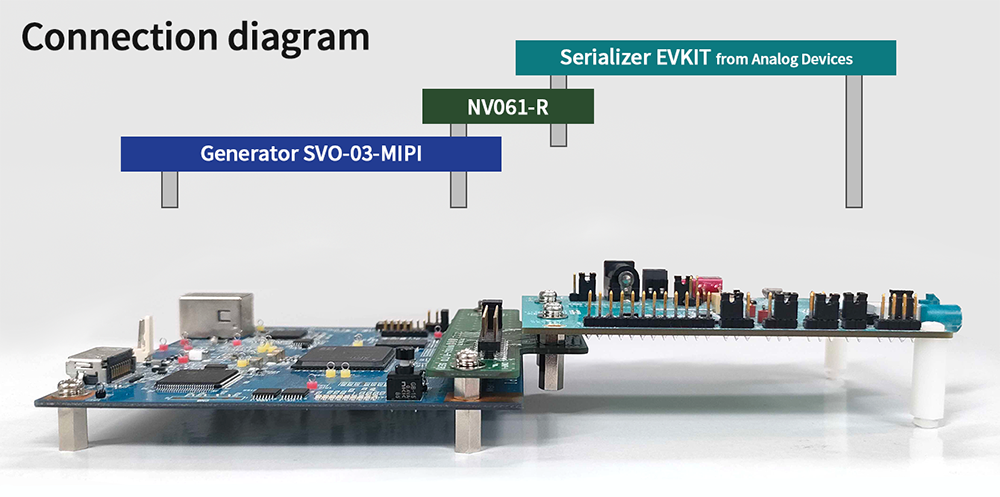

Side view
Schematics
NV061-R (PDF)NV061-Q (PDF)
If you are interested, please feel free to contact us.
